Laser cutting
Laser cutting machines TruLaser 5030 classic and Trumatic L3050
Laser cutting of metal sheets almost always brings advantages and considerable saving in manufacturing expenses as compared with traditional technology.
The firm LASER-TECH, spol. s r.o. has gradually purchased eight laser cutting machines from various foreign companies. We work at maintaining the highest technical level of laser cutting machinery.

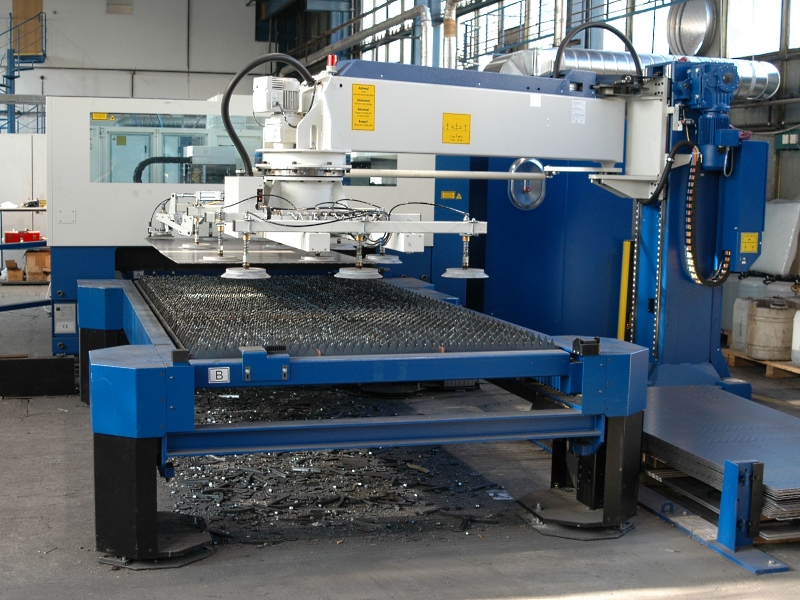

Cooperative laser cutting of sheet is now carried out with two state-of-the-art machines from the German company TRUMPF: the new laser cutting machine TruLaser 5030 classic and the older Trumatic L3050 – both with a CO2 laser with 5000 W performance.
Technical parameters of laser cutting in level (2D) of metal materials
| on laser cutting machine TruLaser 5030 classic and Trumatic L3050 | ||
|---|---|---|
| Semi-finished product | sheet, tube, or another profile | |
| Materials | Structural steel - carbon steel and low alloy (working gas O2) | up to 25 mm in thickness |
| Structural steel - carbon steel and low alloy (N2) | up to 10 mm in thickness | |
| Stainless steel – martensitic and austenitic (N2) | up to 20 mm in thickness | |
| Aluminium alloys (N2) | up to 12 mm in thickness | |
| Brass (N2) | up to 5 mm in thickness | |
| Sheet size – size of x-y table | max. 3 000 × 1 500 mm | |
| Precision – positional deviation | ± 0,1 mm | |
| Beam width | 0,3 – 1,0 mm | |
| Maximum weight of the work-piece | 900 kg | |
Use of unspecified technical parameters requires previous consultation with the staff of the commercial or the technical section of LASER-TECH company. Our contact data can be found here.
Are you interested in our offer of laser cutting or do you require an estimate for an order? Fill in the simple questionnaire, we will call you and arrange for everything.
